10-100W LED Pole Lights, IP65, 100Lm/W

AGL12


  • AGL12 is a new type of LED Pole Lights with high cost performance.
  • The surface of AGL12 is made of ADC12's die-cast aluminum material, which is available in black and gray.
  • The light-emitting surface is made of 4MM tempered glass, which greatly improves the anti-collision level of the whole lamp, and has the effect of anti-UV.
  • The waterproof level has reached IP65, can work in different ambient temperature from -30℃ to 50℃.
  • The lens of AGL12 can use conventional symmetrical light distribution angles, or different types of asymmetric light distribution angles.
  • It can be compatible with 3030 and 5050 lamp beads, and the maximum light efficiency can be 160LM/W, which can meet customers' needs for greater brightness and energy saving.

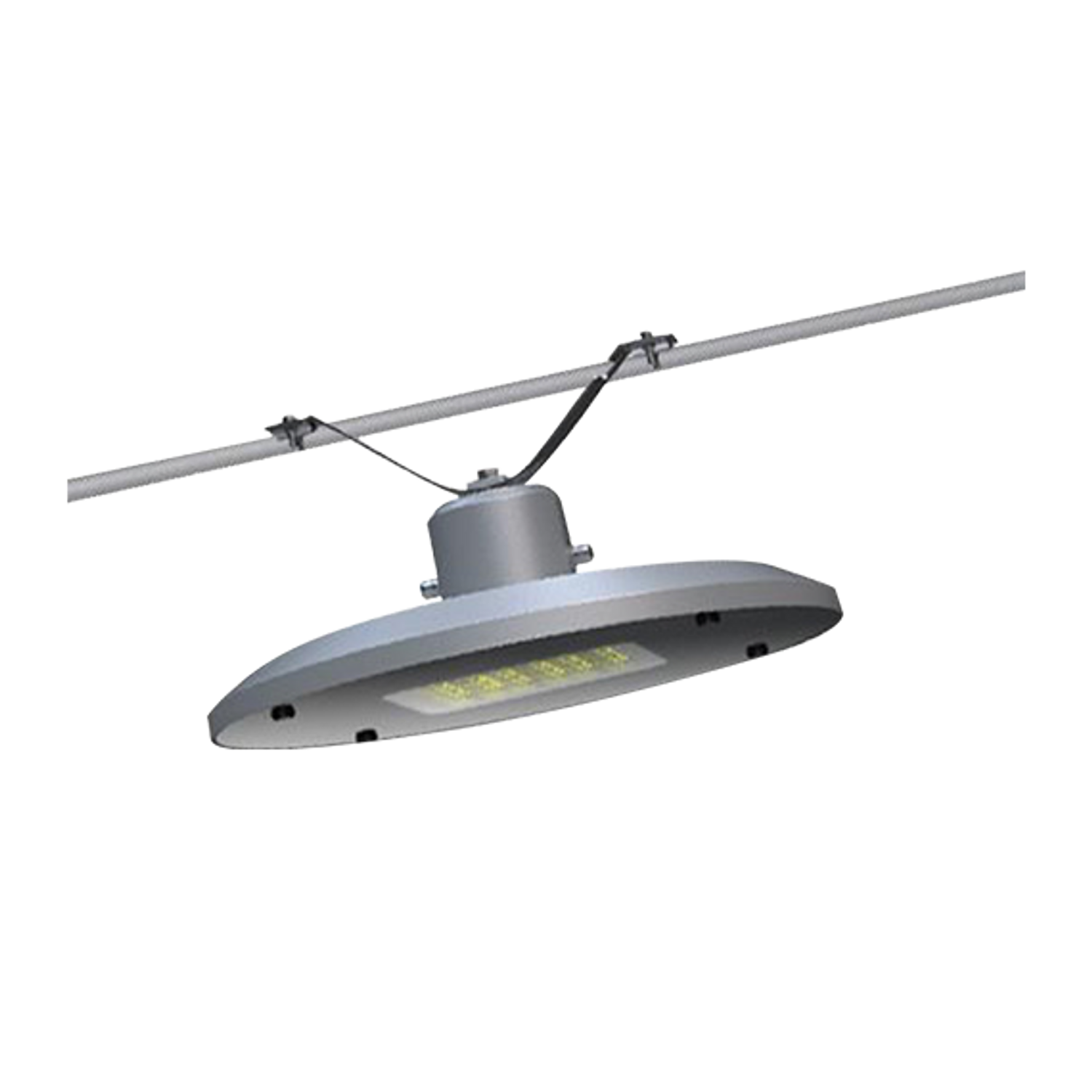

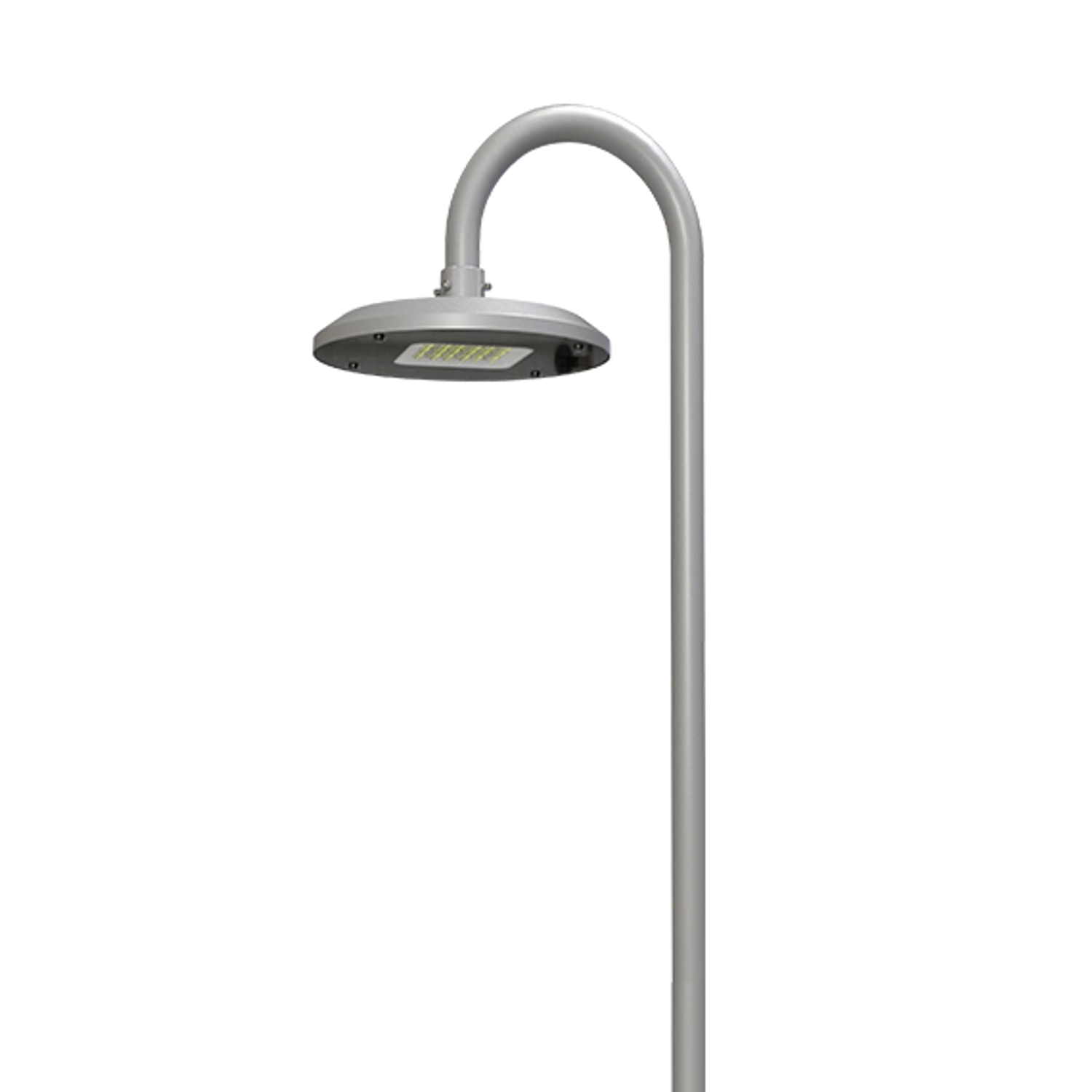

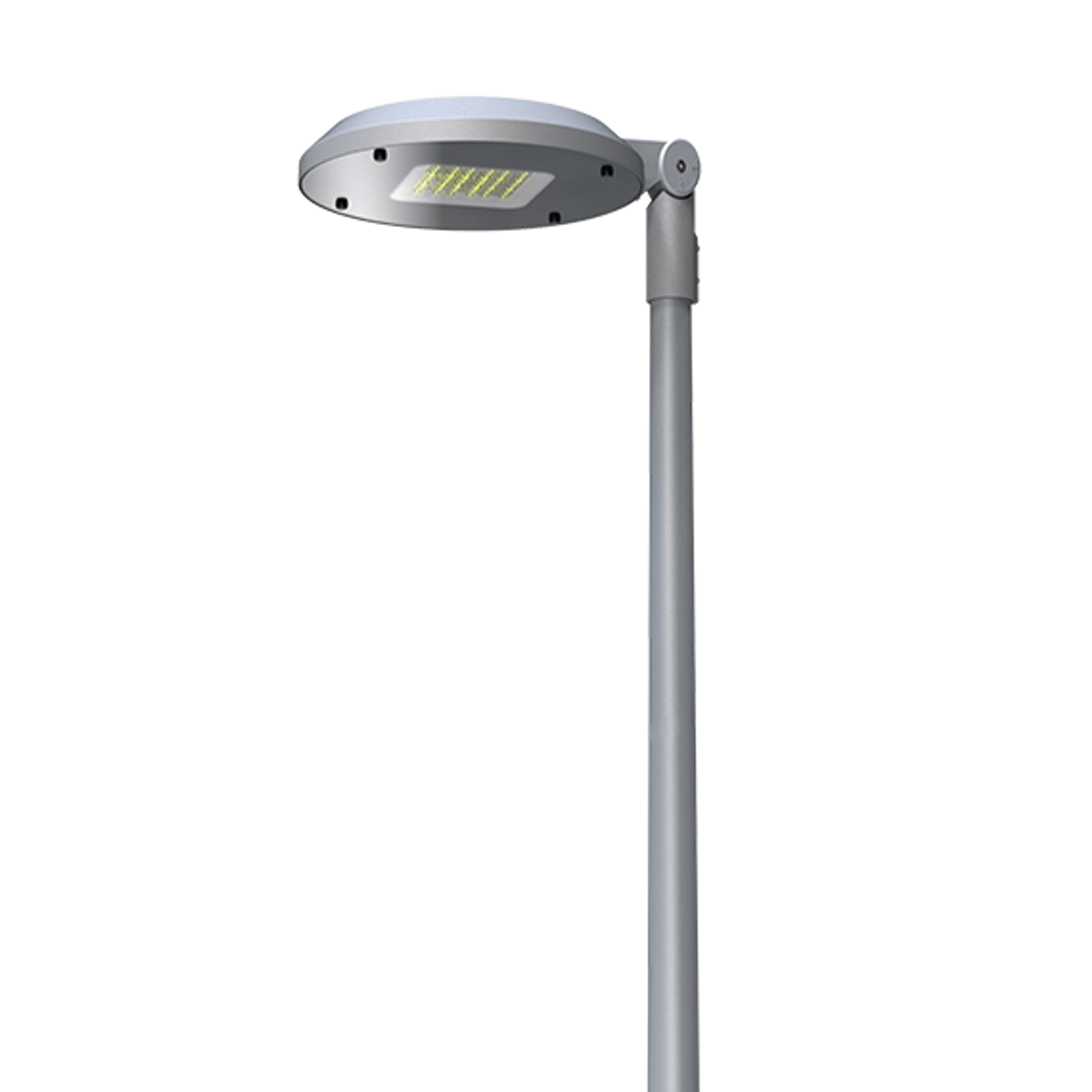

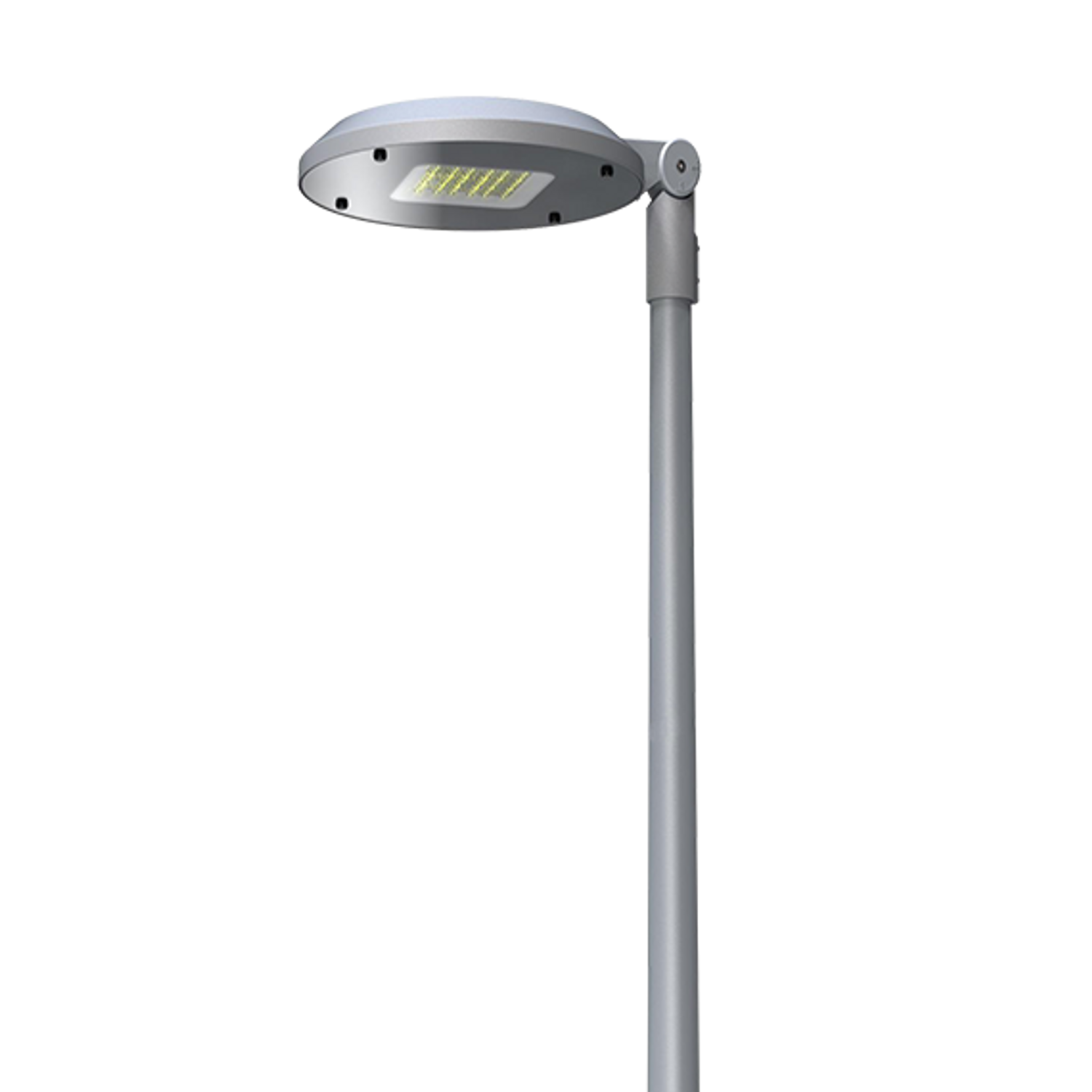

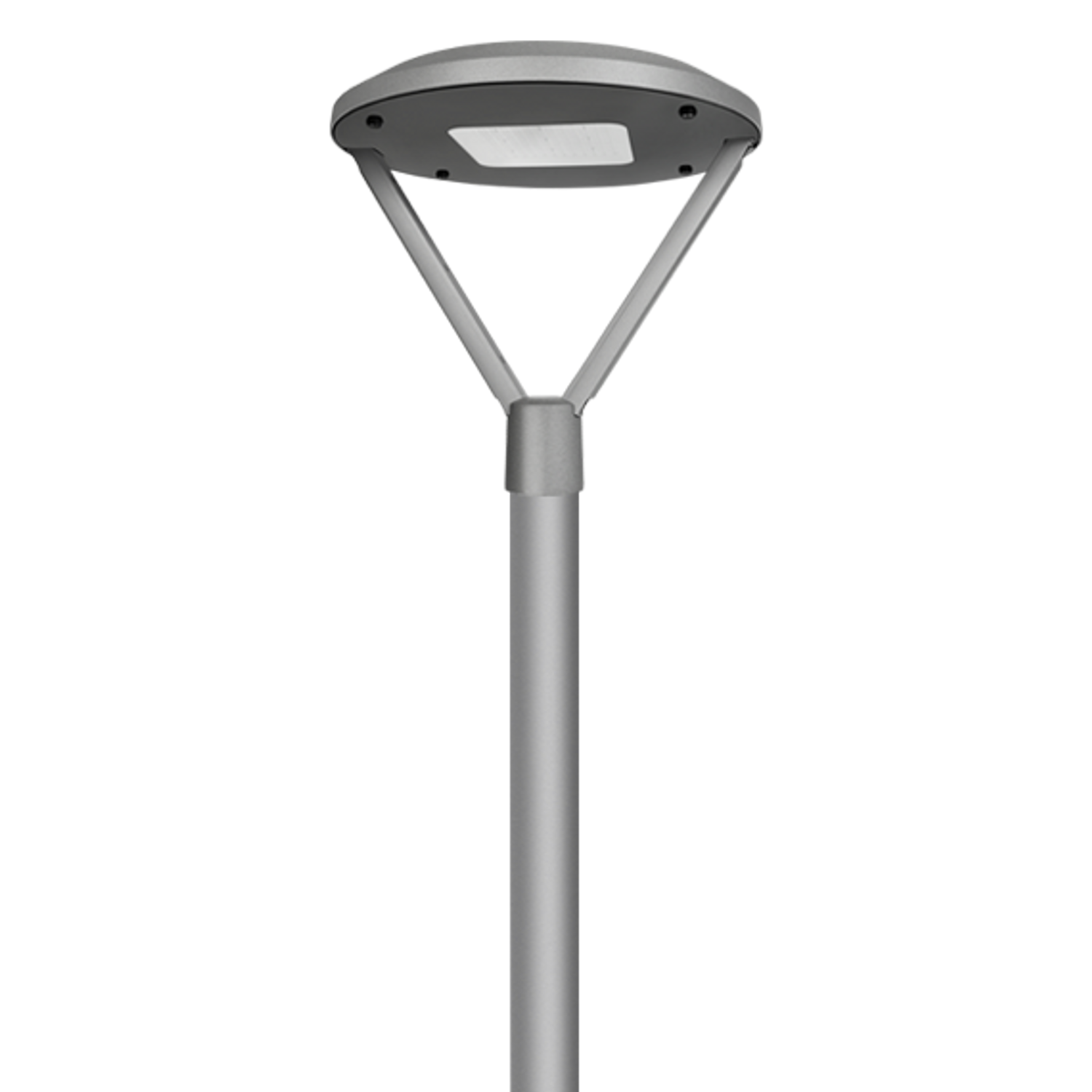

  • AGL12 LED Pole Lights can be pendant mounted, side entry mounted, suspended mounted and post top mounted four installation schemes to meet the security needs of different installation and use environments.
Product Model Wattage Input Voltage Luminous Efficacy(MAX) RA Color Temperature Beam Angle PF

Pole diameter(mm)

Dimension(mm)
AGL12 10-100W

AC85-305V

160Lm/W

>70|80|90 2200-6500K

Type I | Type II | Type III

>0.9 φ60 | φ76 500*500*450
PRODUCT DESCRIPTION

  • AGL12 is a new type of LED Pole Lights with high cost performance.
  • The surface of AGL12 is made of ADC12's die-cast aluminum material, which is available in black and gray.
  • The light-emitting surface is made of 4MM tempered glass, which greatly improves the anti-collision level of the whole lamp, and has the effect of anti-UV.
  • The waterproof level has reached IP65, can work in different ambient temperature from -30℃ to 50℃.
  • The lens of AGL12 can use conventional symmetrical light distribution angles, or different types of asymmetric light distribution angles.
  • It can be compatible with 3030 and 5050 lamp beads, and the maximum light efficiency can be 160LM/W, which can meet customers' needs for greater brightness and energy saving.
  • AGL12 LED Pole Lights can be pendant mounted, side entry mounted, suspended mounted and post top mounted four installation schemes to meet the security needs of different installation and use environments.
SPECIFICATION
Product Model Wattage Input Voltage Luminous Efficacy(MAX) RA Color Temperature Beam Angle PF

Pole diameter(mm)

Dimension(mm)
AGL12 10-100W

AC85-305V

160Lm/W

>70|80|90 2200-6500K

Type I | Type II | Type III

>0.9 φ60 | φ76 500*500*450

Application

Roads

Residential Streets

Bridges

Parking Lot

Airport

Port
